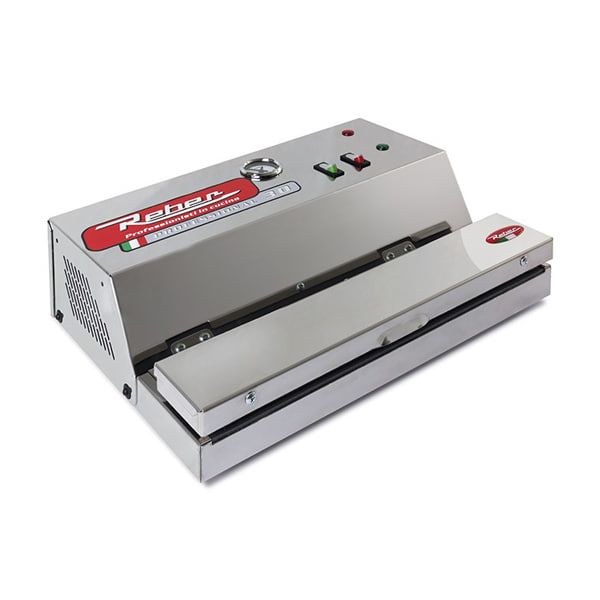

Reber Professional 30 vacuum packaging machine 9709NEL

Reber Professional 30 vacuum packaging machine 9709NEL

Reber Professional 30 vacuum packaging machine 9709NEL 32 cm sealing bar. The 9709NEL model is a professional device for vacuum packing foodstuffs, characterised by an internally separated liquid air intake system. This external suction vacuum machine is designed for intensive and continuous use. The structure is entirely made of stainless steel, ensuring the highest levels of cleanliness and hygiene. The 32 cm sealing bar offers the possibility to use the machine with normal embossed vacuum bags with an opening of up to 30 cm. The vacuum level reaches -900 millibars of vacuum and the capacity to vacuum up to 40 litres per minute.

Technical specifications

Below are the main technical features of the Reber Professional 30 professional vacuum packaging machine 9709NEL

• Stainless steel casing
• Professional vacuum gauge
• Maintenance-free, self-lubricating double-body piston pump
• Vacuum level: -900 mbar
• Suction capacity: 40 l/min.
• Maximum power consumption: 280W
• 32 cm sealing bar. 3 mm width.
• Energy-saving system with electronic control of power output during welding
• Electronically adjustable welding power
• Electronically adjustable SUPERVOY function
• Continuous cycle operation
• Fully automatic operation or operator-selectable manual mode
• Air intake for the use of the supplied container and lid attachment
• Maximum speed and ease of use
• Can also be used with smooth bags with bellows or central channel

Description

Reber Professional 30 professional vacuum packing machine 9709NEL is a professional vacuum packing machine designed to be easy to use and maintain.

It differs from Ecopro 30 code 9709NE because it is more powerful. In addition, the internal arrangement of the suction circuit makes it possible to manage the suction of liquids more safely. This machine cannot suck in liquids. In spite of this, however, the vacuum suction pump of the 9709NEL vacuum welding machine can better intercept any liquid in the system. In fact, only the Professional versions can be ordered with the addition of the external suction filter.

As with the 9709NE, also the 9709NEL is not equipped with a potentiometer. The potentiometer is that rotatable knob that allows the welding power to be adjusted for each vacuum cycle. It is present in larger models, such as the 9714N but is absent in the 9714NEL. It can be useful when vacuum-packing thicker bags or if you want to be able to adjust the power level manually. But if used incorrectly, it can lead to malfunctions in the vacuum machine. For this reason, the 9709NEL version has been simplified by eliminating this component and having the necessary sealing power managed directly by the vacuum machine's internal electronic board.

The device is prepared for theautomatic execution of vacuum/welding cyclebut it is possible to switch to manual operation via electronic programming. In fact, Reber's Professional 30 professional vacuum packaging machine is equipped with double electromechanical key. The button with the green profile starts the automatic vacuum and sealing cycle. Thanks to the solenoid valve, at the end of the operation, the lid of the Professional 30 vacuum sealer is automatically released and the closed, airless vacuum bag can be removed.

You can also set the machine to work manually and not automatically. The main advantage of manual operation of the vacuum packing machine is to be able to interrupt suction when it is considered most appropriate to limit the crushing of the contents by immediately sealing. To set manual operation or to reset automatic operation, a specific combination of the two buttons must be pressed, as shown in the instruction manual.

The Reber Professional 30 9709NEL is set for a waiting time of 10 seconds between reaching the set vacuum level and the start of the welding process, but you can reduce or increase (Supervacuum function) this waiting time, again by means of electronic programming.

The machine is also programmed for a waiting time of 10 seconds at the end of the welding operation in order to achieve a higher quality weld. Directions for changing the welding power are given in the user and maintenance manual.

Included with the machine are the accessory for vacuuming containers and a pack of 20 Reber 20×30 cm bags. With this machine it is however also possible to use bags ROYAL PACK.

In addition, this professional vacuum machine is equipped with a overheating control system. In fact, the electronic board of the Reber Professional 30, in case of overheating, blocks the machine to avoid excessive temperatures. This can happen in summer, when the ambient temperature is high and, at the same time, when the machine is used for very close in time and repeated suction-welding cycles.

As a result, the reduction in welding power speeds up the vacuum and suction cycle. This allows you to work for longer.

Instructions for use

The Reber Professional 30 vacuum packaging machine 9709NEL is extremely powerful. To use it, follow these simple instructions:

• place the food in the bag, leaving at least 7-10 centimetres of empty space between the opening and the food
• place the open part of the bag in the vacuum chamber, marked by the black seals
• close the vacuum chamber by dropping the machine cover onto the bag
• Operate the machine with the green button (in case of manual operation, press and hold the button)
• exert slight pressure, especially at an early stage, on the machine cover REBER Professional Electronic 30 stainless steel vacuum machine 9709NEL
• wait for the machine to finish the suction and welding process
• do not force the lid to reopen. The REBER Professional Electronic 30 stainless steel vacuum machine 9709NEL  is equipped with a solenoid valve for automatic lid release at the end of the suction and welding cycle
• In the case of using a very large and long bag and, more generally, to facilitate the vacuuming of the machine, as soon as the vacuum procedure has started it may be useful to raise the bottom of the bag a few centimetres. In this way, by aligning it with the level of the machine, the vacuum process will be smoother.

Notes on use

This machine, as well as all externally suctioned vacuum devices, NOT suitable for vacuuming using smooth bags.

Furthermore, it is not possible to vacuum with floury or high-moisture foodstuffs because flour and water tend to be sucked up by the vacuum pump.

This is not a defect of the machine, but is due to physical issues in the functioning of this category of articles.

If you know that you have to vacuum foods such as those described, you should not buy these items because the guarantee does not cover damage resulting from the suction of dust and liquids.
